Saline Water Intrusion

Saline water intrusion refers to the movement of saline or saltwater into freshwater aquifers, making the water unsuitable for drinking, agriculture, and industrial purposes. It often occurs in coastal regions and is a significant issue for water resource management.

Key Concepts and Terminologies

Aquifer:
An underground layer of water-bearing rock or sediment that stores and transmits groundwater. Aquifers are classified into two types:
- Unconfined Aquifers: Water is not trapped between layers, and the aquifer is in direct contact with the atmosphere.
- Confined Aquifers: Water is trapped between impermeable layers of rock or clay, protecting it from direct contamination.
Saline Water:
Water that contains a high concentration of dissolved salts, typically more than 1,000 mg/L of total dissolved solids (TDS).
Hydraulic Gradient:
The difference in water pressure between freshwater and saline water that determines the movement of water. A reduced gradient can allow saline water to move inland.
Saltwater-Freshwater Interface:
The boundary where saline water meets freshwater in an aquifer. This interface can shift due to natural or human-induced changes.
Cone of Depression:
A cone-shaped lowering of the water table caused by excessive groundwater extraction. This can draw saline water into freshwater zones.
Seawater Intrusion Zone:
The region in a coastal aquifer where saltwater has replaced freshwater due to intrusion.

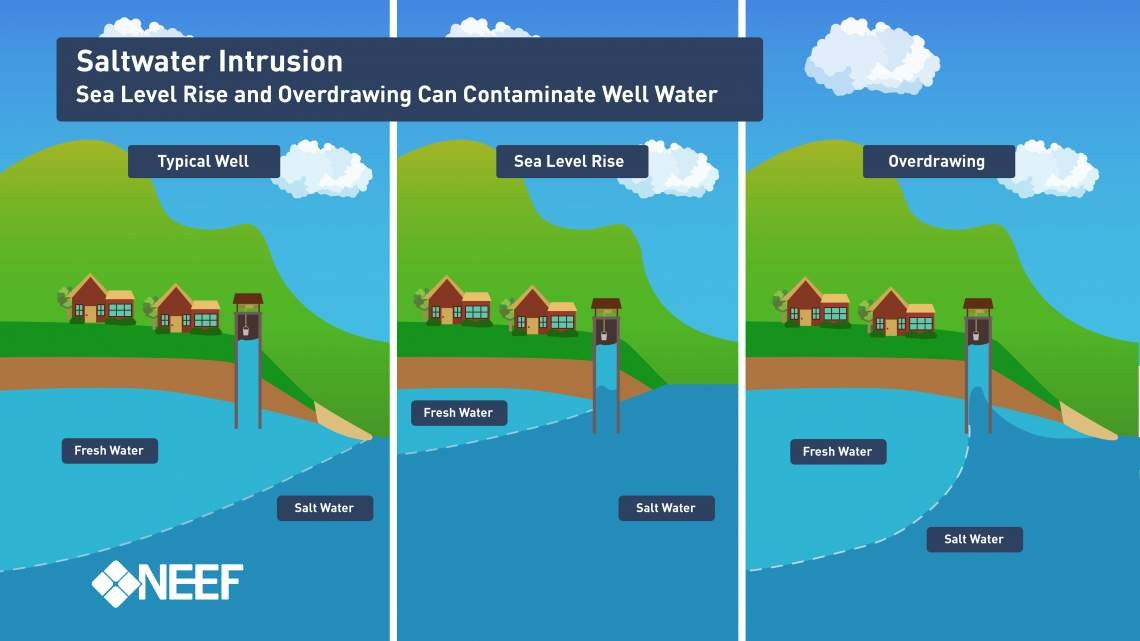

Mechanism of Saline Water Intrusion

Natural Processes:
- Sea level rise due to climate change increases the pressure of seawater, pushing it into coastal aquifers.
- Tidal fluctuations can also temporarily increase saline water infiltration into aquifers.
Human Activities:
- Over-extraction of Groundwater: Excessive pumping of freshwater lowers the water table, reducing the hydraulic gradient and allowing saltwater to flow inland.
- Land Use Changes: Urbanization and deforestation alter natural recharge rates, reducing the replenishment of freshwater aquifers.
- Canal Construction: Artificial water channels can allow saltwater to seep into aquifers.

Examples of Saline Water Intrusion

Region	Description
Coastal Gujarat, India	Overuse of groundwater for irrigation has led to significant saltwater intrusion, affecting crop yields.
Florida, USA	Extensive groundwater pumping for municipal and agricultural use has caused intrusion into local aquifers.
Bangkok, Thailand	Urban expansion and groundwater exploitation have exacerbated salinity issues in the aquifers.

Impacts of Saline Water Intrusion

Water Quality Degradation:
- Increases salinity, making water unfit for drinking or irrigation.
- Alters the chemical composition of aquifers, increasing the concentration of chlorides, sulfates, and other salts.
Agricultural Damage:
- Irrigation with saline water reduces soil fertility and crop yields due to salt accumulation in the soil.
Economic Costs:
- Increased reliance on desalination and water treatment technologies.
- Losses in agricultural productivity and land value.
Ecosystem Disruption:
- Changes in the salinity of groundwater-fed wetlands can harm aquatic and terrestrial ecosystems.

Mitigation Measures

Strategy	Description
Groundwater Management	Limit extraction rates to prevent overexploitation of aquifers.
Artificial Recharge	Replenish aquifers with treated wastewater or rainwater harvesting systems.
Regulatory Measures	Enforce zoning laws to restrict activities that lead to over-pumping near coastlines.
Saltwater Barriers	Construct underground barriers or injection wells to block saltwater from entering freshwater zones.
Monitoring Systems	Implement salinity and water level monitoring systems to detect and mitigate early signs of intrusion.
