Geographic Data Precision and Data Organization

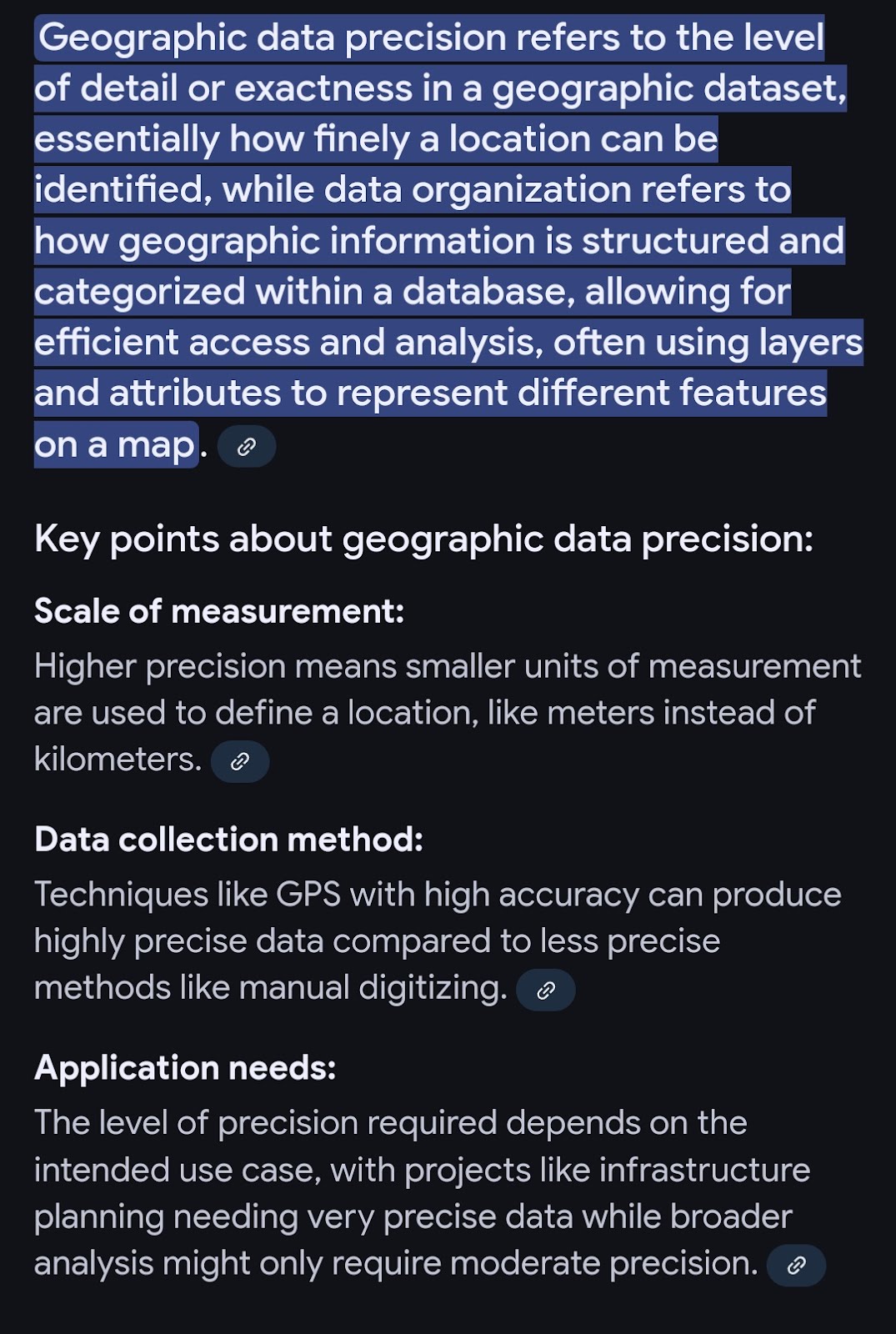

Geographic Data Precision

Definition:
Precision in geographic data refers to the level of detail and exactness of spatial data, including coordinate measurements, attribute values, and scale representation.

Key Concepts and Terminologies:

Spatial Resolution: The smallest measurable unit in a dataset. For raster data, it refers to the pixel size (e.g., Sentinel-2 has a 10m resolution for some bands).
Positional Accuracy: The closeness of recorded spatial coordinates to their true location (e.g., GPS readings within ±3 meters).
Attribute Accuracy: The correctness of non-spatial information (e.g., land cover classification).
Temporal Accuracy: The precision of time-related aspects in data, such as timestamps in satellite imagery.
Scale Dependence: The relationship between data precision and map scale (e.g., a 1:10,000 scale map has more detailed features than a 1:100,000 map).
Error Propagation: The accumulation of inaccuracies when processing spatial data (e.g., errors in digital elevation models affecting watershed analysis).

Example of Geographic Data Precision:

A land use/land cover (LULC) map derived from high-resolution imagery (e.g., 5m resolution) will provide more precise details compared to a lower-resolution 30m Landsat image.
GPS tracking for wildlife monitoring may record locations with ±5m accuracy, affecting movement pattern analysis.

2. Geographic Data Organization

Definition:
Geographic data organization refers to the systematic structuring, storage, and management of spatial data to ensure efficient retrieval and analysis.

Types of Geographic Data Organization:

Spatial Data Models:
- Vector Data: Represents discrete features using points, lines, and polygons.
- Raster Data: Represents continuous surfaces through grid cells (e.g., elevation models).
Database Structures:
- Flat Files: Simple text or CSV files storing geographic coordinates and attributes.
- Relational Databases (RDBMS): Uses tables with spatial indexing (e.g., PostgreSQL/PostGIS).
- NoSQL Databases: For handling unstructured geographic data (e.g., MongoDB with geospatial indexing).
Data Hierarchies:
- Raw Data → Processed Data → Finalized Datasets
- Global → National → Regional → Local Datasets
Spatial Indexing & Metadata:
- Quadtrees & R-trees: Spatial indexing methods for efficient data retrieval.
- Metadata Standards: FGDC, ISO 19115 ensure proper documentation of spatial datasets.

Example of Geographic Data Organization:

In Google Earth Engine (GEE), Sentinel-2 imagery is stored as a raster dataset with bands representing different spectral wavelengths.
A city's road network stored in a GIS database may use a vector-based relational structure, where road segments have attributes like speed limits and road types.
