Earthquake


1. Earthquakes: Definition and Causes

An earthquake is a sudden shaking of the Earth's surface caused by the release of energy in the Earth's crust. This energy release can stem from several sources:

  • Tectonic Stress: The primary cause, resulting from the movement and interaction of tectonic plates.
  • Volcanic Activity: Earthquakes can accompany volcanic eruptions.
  • Human Activities: Certain human actions, such as mining, can induce earthquakes.

Example: The 2011 Tōhoku earthquake (Japan) was a magnitude 9.0 megathrust earthquake caused by the subduction of the Pacific Plate beneath the Okhotsk Plate at a convergent plate boundary.

2. Seismic Waves: Types and Characteristics

Earthquakes generate seismic waves that propagate through the Earth. These waves are categorized as:

  • Body Waves: Travel through the Earth's interior.

    • Primary Waves (P-waves):
      • Fastest seismic waves (6–7 km/s).
      • Compressional waves (particle motion is parallel to wave propagation).
      • Travel through solids, liquids, and gases.
      • Example: P-waves from an earthquake in Chile can be detected in Japan within minutes.
      • Connection to Earth's Structure: P-waves refract at the core-mantle boundary, indicating the liquid outer core.
    • Secondary Waves (S-waves):
      • Slower than P-waves (3.5–4 km/s).
      • Shear waves (particle motion is perpendicular to wave propagation).
      • Travel only through solids.
      • Example: S-waves cannot travel through the liquid outer core, creating an S-wave shadow zone beyond 105° from the epicenter.

  • Surface Waves: Travel along the Earth's surface.

    • Love Waves: Horizontal shearing motion (side-to-side).
    • Rayleigh Waves: Rolling motion (similar to ocean waves).
    • Slowest but often the most destructive waves.
    • Example: Surface waves caused widespread destruction in the 2015 Nepal earthquake.

3. Plate Tectonics and Earthquakes

The Earth's lithosphere is comprised of several rigid tectonic plates that float on the semi-fluid asthenosphere. Interactions between these plates are the primary driver of earthquakes:

  • Convergent Boundaries: Plates collide (e.g., Nazca and South American Plates), leading to megathrust earthquakes (e.g., 2004 Indian Ocean tsunami).
  • Divergent Boundaries: Plates move apart (e.g., Mid-Atlantic Ridge), resulting in shallow earthquakes.
  • Transform Boundaries: Plates slide past each other (e.g., San Andreas Fault), causing strike-slip earthquakes (e.g., 1906 San Francisco earthquake).

4. Earth's Structure and Seismic Evidence

Seismic waves provide crucial information about the Earth's internal structure:

  • Crust: The Earth's outermost layer (continental: 20–70 km thick; oceanic: 5–10 km thick). Earthquakes originate in the crust or upper mantle.
  • Mantle: A semi-solid layer of rock (including the asthenphere) where tectonic plates move.
  • Core: Composed of a liquid outer core and a solid inner core.
  • Seismic Evidence:
    • P-wave velocity decrease in the asthenosphere suggests a partially molten state.
    • The S-wave shadow zone indicates the liquid nature of the outer core.

5. Plate Boundaries and Earthquake Characteristics

Boundary TypeStress TypeFault TypeEarthquake DepthExample
ConvergentCompressionalReverse/ThrustShallow to Deep2011 Japan Tōhoku Earthquake
DivergentTensionalNormalShallow (<30 km)East African Rift Valley
TransformShearStrike-SlipShallow1906 San Francisco Earthquake

6. Intraplate Earthquakes

Intraplate earthquakes occur within tectonic plates, away from plate boundaries. They can be caused by reactivation of ancient faults or mantle plumes. Example: 1811–1812 New Madrid earthquakes (Missouri, USA).

7. Seismology and Applications

  • Epicenter Location: Determined by triangulating P- and S-wave arrival times at seismographs.
  • Engineering: Seismic data is crucial for designing earthquake-resistant structures.

8. Key Connections Summary

  • Seismic Waves & Earth's Structure: Seismic wave behavior reveals the layered structure of the Earth (crust, mantle, core).
  • Plate Boundaries & Earthquakes: The majority of earthquakes occur at plate boundaries due to tectonic stress.
  • Surface Waves & Damage: Surface waves, particularly Love and Rayleigh waves, are responsible for much of the damage during earthquakes.

Magnitude

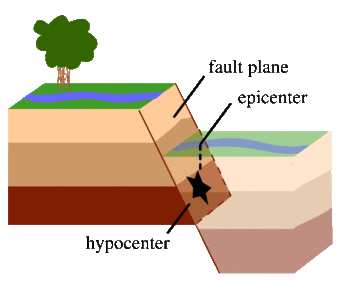

Magnitude measures the energy released at the earthquake's source (focus or hypocenter). It's a quantitative measure, meaning it's based on instrumental recordings and calculations.3

  • Richter Scale: Historically, the Richter scale was used to measure magnitude.4 It's a logarithmic scale, meaning each whole number increase represents a tenfold increase in amplitude and approximately5 32 times more energy release.6 However, the Richter scale is less accurate for very large earthquakes.7
  • Moment Magnitude Scale (Mw): The modern standard is the moment magnitude scale. It provides a more accurate measure of energy release, especially for large earthquakes, by considering factors like fault rupture area and slip.8

Intensity

Intensity, on the other hand, measures the strength of ground shaking at a particular location. It's a qualitative measure based on observed effects on people, structures, and the environment.

  • Modified Mercalli Intensity Scale (MMI): The MMI scale is commonly used to describe intensity.9 It's a Roman numeral scale (I to XII) that describes the effects of shaking, ranging from barely felt to catastrophic.10 Intensity varies with distance from the epicenter, local geology, and building construction.11

Key Differences

FeatureMagnitudeIntensity
What it measuresEnergy released at the sourceStrength of shaking at a location
Type of measureQuantitative (instrumental)Qualitative (observed effects)
ScaleRichter (historical), Moment Magnitude (Mw)Modified Mercalli (MMI)
ValueSingle value for an earthquakeVaries with location for an earthquake

Seismograph and Seismology

  • Seismograph: A seismograph is an instrument that records ground motion during an earthquake.12 It consists of a sensor that detects ground movement and a recording system that produces a seismogram.13
  • Seismogram: A seismogram is the record produced by a seismograph.14 It shows the arrival times and amplitudes of different seismic waves (P-waves, S-waves, surface waves). Seismologists analyze seismograms to determine earthquake location, magnitude, and other characteristics.15
  • Seismology: Seismology is the scientific study of earthquakes and seismic waves.16 Seismologists use seismographs and other tools to understand earthquake phenomena, Earth's internal structure, and seismic hazards.17

The Most Destructive Earthquakes in History

1. 1556 Shaanxi Earthquake (China)

  • Magnitude: ~8.0
  • Deaths: 830,000+ (Deadliest earthquake in recorded history)
  • Cause: Rupture along the Weihe Basin (strike-slip fault in the Loess Plateau)
  • Impact: Catastrophic collapse of cave dwellings (yaodongs) in densely populated Shaanxi Province.

2. 1976 Tangshan Earthquake (China)

  • Magnitude: 7.5
  • Deaths: 242,000–655,000 (Official figures were initially suppressed)
  • Cause: Strike-slip faulting on the Tangshan Fault (intraplate earthquake)
  • Impact: Approximately 85% of buildings in Tangshan were destroyed. This disaster prompted significant improvements in China's seismic building codes.

3. 2004 Indian Ocean Earthquake & Tsunami

  • Magnitude: 9.1–9.3 (Third largest earthquake ever recorded)
  • Deaths: 230,000+ across 14 countries (including Indonesia, Thailand, Sri Lanka, and India)
  • Cause: A megathrust earthquake at the Sumatra-Andaman subduction zone (Indian Plate subducting under the Burma Plate)
  • Impact: Generated a massive tsunami with waves up to 30 meters (98 feet) high, causing widespread devastation and an estimated $15 billion in damage.

4. 2010 Haiti Earthquake

  • Magnitude: 7.0
  • Deaths: 160,000–300,000 (Exact figures are still disputed)
  • Cause: Strike-slip motion on the Enriquillo-Plantain Garden Fault
  • Impact: The earthquake devastated Port-au-Prince, collapsing poorly constructed buildings and triggering a severe humanitarian crisis.

5. 1923 Great Kantō Earthquake (Japan)

  • Magnitude: 7.9
  • Deaths: 142,000+
  • Cause: Rupture on the Sagami Trough (convergent boundary: Philippine Sea Plate subducting under the Okhotsk Plate)
  • Impact: The earthquake triggered widespread fires in Tokyo and Yokohama, causing extensive damage and loss of life.

6. 1906 San Francisco Earthquake (USA)

  • Magnitude: 7.9
  • Deaths: 3,000+
  • Cause: Strike-slip movement on the San Andreas Fault (transform boundary)
  • Impact: While the earthquake caused initial damage, the subsequent fires contributed to approximately 80% of the destruction. This event led to advancements in earthquake engineering in the United States.

7. 2011 Tōhoku Earthquake & Tsunami (Japan)

  • Magnitude: 9.0 (Fourth largest earthquake ever recorded)
  • Deaths: 19,759+
  • Cause: Megathrust earthquake at the Japan Trench (Pacific Plate subducting under the Okhotsk Plate)
  • Impact: The resulting tsunami triggered the Fukushima Daiichi nuclear disaster and caused widespread damage, with estimated costs exceeding $360 billion.

8. 1960 Valdivia Earthquake (Chile)

  • Magnitude: 9.5 (Largest earthquake ever recorded)
  • Deaths: 1,000–6,000
  • Cause: Megathrust rupture on the Nazca-South America Plate boundary
  • Impact: The earthquake generated a massive tsunami that affected areas across the Pacific Ocean, including Hawaii, Japan, and the Philippines. It also triggered volcanic eruptions.

9. 2005 Kashmir Earthquake (Pakistan/India)

  • Magnitude: 7.6
  • Deaths: 86,000–87,351
  • Cause: Collision between the Indian and Eurasian Plates (reverse faulting)
  • Impact: The earthquake triggered numerous landslides, burying entire villages and leaving approximately 3 million people homeless.

10. 1934 Nepal-Bihar Earthquake (Nepal/India)

  • Magnitude: 8.0
  • Deaths: 10,700–12,000
  • Cause: Thrust faulting in the Himalayas (Indian Plate subducting under the Eurasian Plate)
  • Impact: The earthquake devastated Kathmandu and caused significant damage due to liquefaction in Bihar, India.

Factors Contributing to Destructiveness:

  1. Population Density: Densely populated urban areas are more vulnerable to high casualty rates (e.g., Tangshan).
  2. Building Standards: Poorly constructed buildings are more susceptible to collapse (e.g., Haiti).
  3. Secondary Hazards: Tsunamis (e.g., Indian Ocean), fires (e.g., Tokyo), and landslides (e.g., Kashmir) can significantly amplify the destruction.
  4. Geographic Setting: Subduction zones, where one tectonic plate slides beneath another, are prone to generating the largest and most destructive megathrust earthquakes.
