Projected CRS in GIS

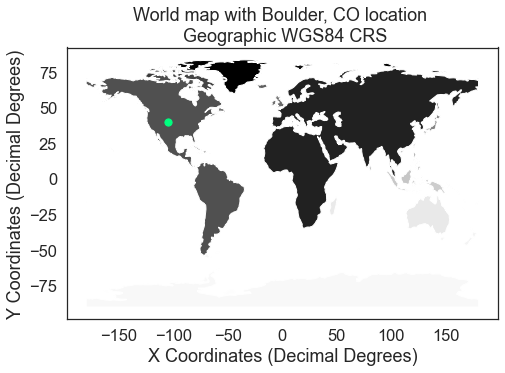

In GIS, a Projected CRS (Coordinate Reference System) is a system used to represent locations on the Earth's surface using a two-dimensional Cartesian coordinate system. Unlike Geographic CRSs, which use latitude and longitude, Projected CRSs employ x and y coordinates on a flat plane to represent geographic locations.

Here's an overview of the key aspects of Projected CRSs:

1. Conversion from Geographic CRS: Projected CRSs are derived from Geographic CRSs through a process known as map projection. Map projections mathematically transform the curved surface of the Earth onto a flat plane, resulting in distortions in shape, distance, area, or direction. Different map projections are designed to minimize specific types of distortion, depending on the intended use of the map.

2. Planar Coordinate System: Projected CRSs use a two-dimensional Cartesian coordinate system, which consists of horizontal x and vertical y axes. The x-axis typically represents east-west coordinates, while the y-axis represents north-south coordinates. The origin (0,0) is usually located near the center of the map projection.

3. Map Projection Methods: There are various map projection methods available, each suitable for different types of geographic areas and purposes. Some commonly used map projections include the Mercator, Lambert Conformal Conic, Albers Equal Area, and Universal Transverse Mercator (UTM) projections. Each projection has specific characteristics and trade-offs, such as preserving shape, area, distance, or direction.

4. Projection Parameters: Different map projections require specific parameters to define their characteristics and behavior. These parameters include central meridian, standard parallels, false easting, false northing, scale factor, and others. These parameters help fine-tune the projection to accurately represent the desired geographic area.

5. Distance, Area, and Direction: Projected CRSs are advantageous for measurements involving distance, area, and direction on a flat surface. With a Projected CRS, you can accurately calculate distances between points, measure areas of polygons, and determine azimuths or angles between features.

6. Local vs. Global Projections: Some map projections are better suited for specific regions, such as national or local coordinate systems. Others, like the UTM projection, are designed to provide accurate representation for specific zones across the globe. These global projections divide the Earth into separate zones, each with its own projection parameters.

When working with Projected CRSs, it's essential to select an appropriate projection that minimizes distortions and suits the specific analysis or visualization requirements. GIS software provides tools to transform data between different CRSs, allowing you to project spatial data into the desired coordinate system for analysis, visualization, or data integration purposes.
