CRS in GIS. Cordinate Reference System

In the context of Geographic Information Systems (GIS), CRS stands for Coordinate Reference System. A Coordinate Reference System is a framework used to define and represent locations on the Earth's surface in a consistent and standardized manner.

The Earth is a three-dimensional object, and in order to accurately represent locations on its surface, we need a system that defines how coordinates are measured and referenced. A CRS provides a set of rules, parameters, and mathematical formulas to define the coordinates of points on the Earth's surface.

There are two main types of CRSs used in GIS: Geographic CRS and Projected CRS.

1. Geographic CRS: A Geographic CRS, also known as a geodetic CRS, uses latitude and longitude to define locations on the Earth's surface. Latitude measures the distance north or south of the Equator, while longitude measures the distance east or west of a reference meridian, typically the Prime Meridian (0 degrees longitude) that passes through Greenwich, London. Geographic CRSs are based on a spherical or ellipsoidal model of the Earth, such as the World Geodetic System 1984 (WGS84) or the North American Datum 1983 (NAD83).

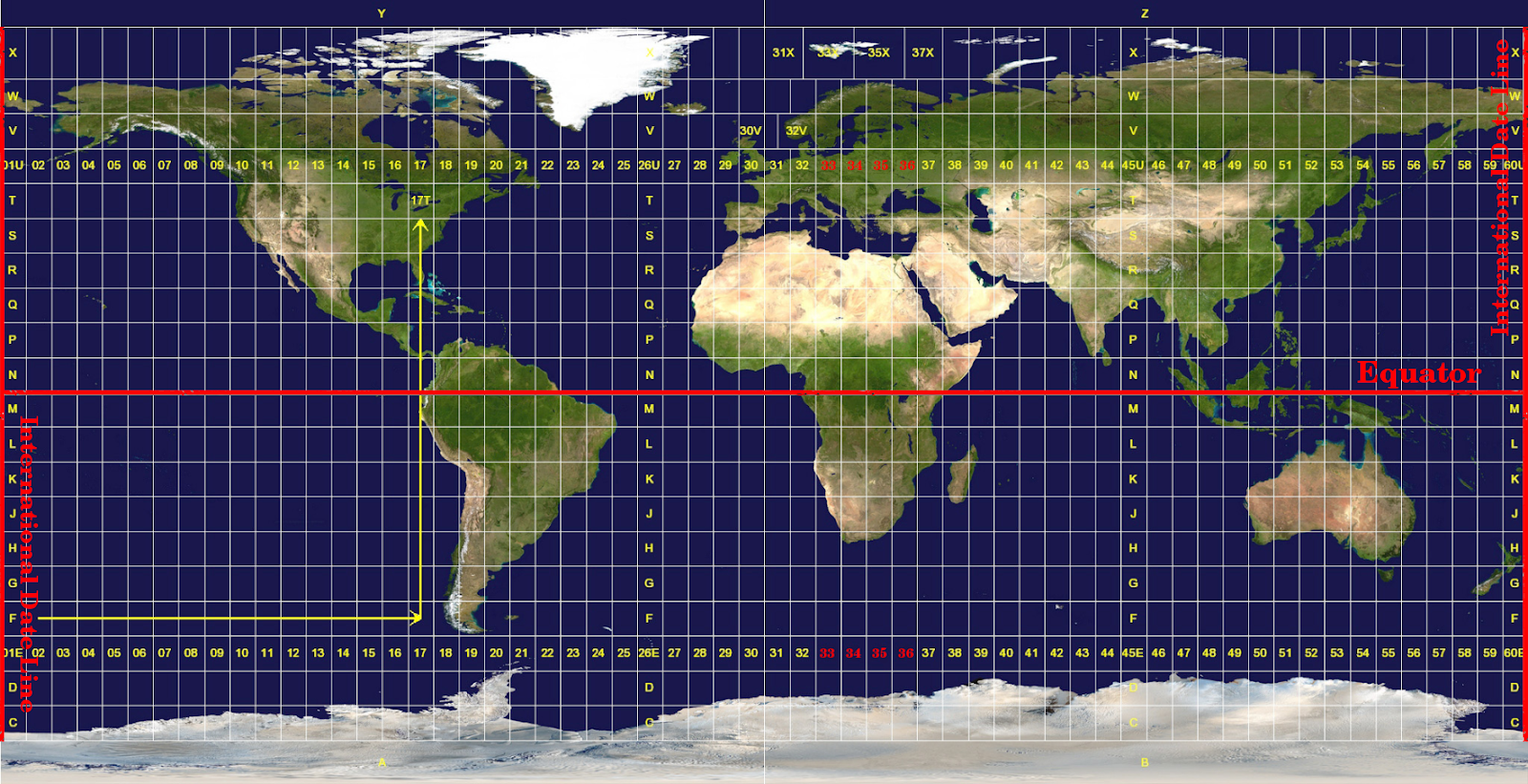

2. Projected CRS: A Projected CRS, also known as a Cartesian CRS, uses a two-dimensional Cartesian coordinate system to represent locations on a flat surface, such as a paper map or a computer screen. Projected CRSs are derived from Geographic CRSs by applying mathematical transformations to convert the spherical or ellipsoidal coordinates into planar (x, y) coordinates. The transformation involves processes like flattening, scaling, and distortion correction. Projected CRSs are commonly used for measuring distances, areas, and directions accurately on maps. Examples of projected CRSs include the Universal Transverse Mercator (UTM) and the Lambert Conformal Conic (LCC) systems.

CRSs are essential in GIS because they ensure that geographic data from different sources can be accurately integrated and analyzed. When working with spatial data, it is crucial to use the correct CRS to avoid distortions, errors, and inconsistencies. GIS software allows users to define and assign CRSs to their datasets, ensuring proper alignment and accurate analysis.

It's worth noting that there are many different CRSs available, each suitable for specific regions, purposes, or map projections. Choosing the appropriate CRS depends on the geographic extent of your study area, the level of accuracy required, and the intended use of the data.
