Spatial Queries


A spatial query in Geographic Information Systems (GIS) is a type of database query that retrieves geographic data based on spatial relationships such as location, proximity, or overlap. Unlike attribute-based queries, which retrieve data based on non-spatial characteristics (e.g., "find all schools with more than 500 students"), spatial queries leverage geometric data (points, lines, polygons) to analyze relationships between spatial features.

1. Spatial Relationships

Spatial queries analyze how geographic features relate to each other in space. The key spatial relationships include:

  • Distance (Proximity): How far apart features are.
  • Direction (Orientation): The relative position of one feature concerning another.
  • Containment: Whether one feature is completely inside another.
  • Intersection: Whether two or more features share common space.
  • Adjacency (Touching): Whether features share a boundary.
  • Overlay: Combining multiple layers to derive new information.

2. Geometric Data Types

GIS spatial queries work with different geometric representations of spatial data:

  • Points: Represent discrete locations (e.g., bus stops, crime incidents).
  • Lines: Represent linear features (e.g., roads, rivers).
  • Polygons: Represent areas (e.g., city boundaries, land parcels).

Each geometric type can be used in different types of spatial queries to analyze spatial relationships.

Types

1. Directional Queries

Directional queries analyze the orientation of features relative to one another.

Examples:

  • "Find all schools located north of the park."
  • "Identify rivers flowing east to west."

These queries help in navigation, environmental studies, and urban planning.

2. Distance (Proximity) Queries

These queries retrieve features based on their distance from a given point, line, or polygon.

Examples:

  • "Find all restaurants within a 5-mile radius of this location."
  • "Calculate the distance between two cities."
  • "Identify houses within 100 meters of a fault line."

This is useful in site selection, disaster management, and infrastructure planning.

3. Topological Queries

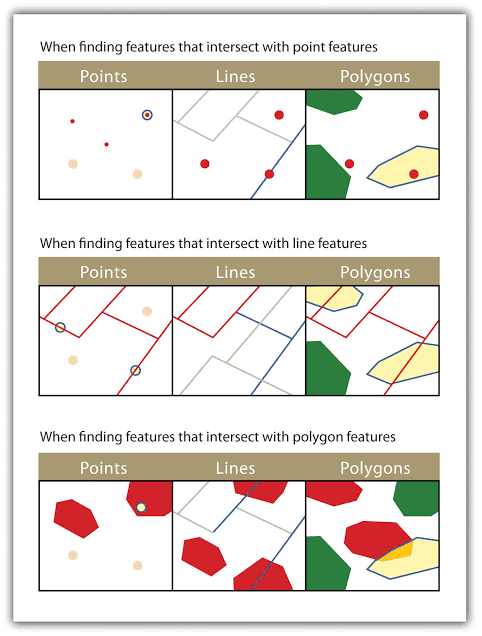

Topological queries analyze geometric relationships such as containment, intersection, and adjacency.

Examples:

  • Containment Query: "Which counties completely contain this city?"
  • Intersection Query: "Do these two roads intersect?"
  • Adjacency Query: "Find all parcels touching a river."

These queries are widely used in land-use planning and environmental analysis.

4. Other Common Spatial Query Categories

Query TypeDescriptionExample
Containment QueriesChecks if one feature is inside another"Find all buildings within a flood zone."
Intersection QueriesFinds overlapping features"Identify all roads crossing a river."
Buffer QueriesIdentifies areas within a set distance"Find protected zones 500m around a lake."
Nearest Neighbor QueriesFinds the closest feature to a given location"Find the nearest hospital from an accident site."
Overlay QueriesCombines multiple layers to create a new dataset"Overlay land use and population density layers to find high-density residential areas."
