Encoding Keyboard digitization electronic data transfer

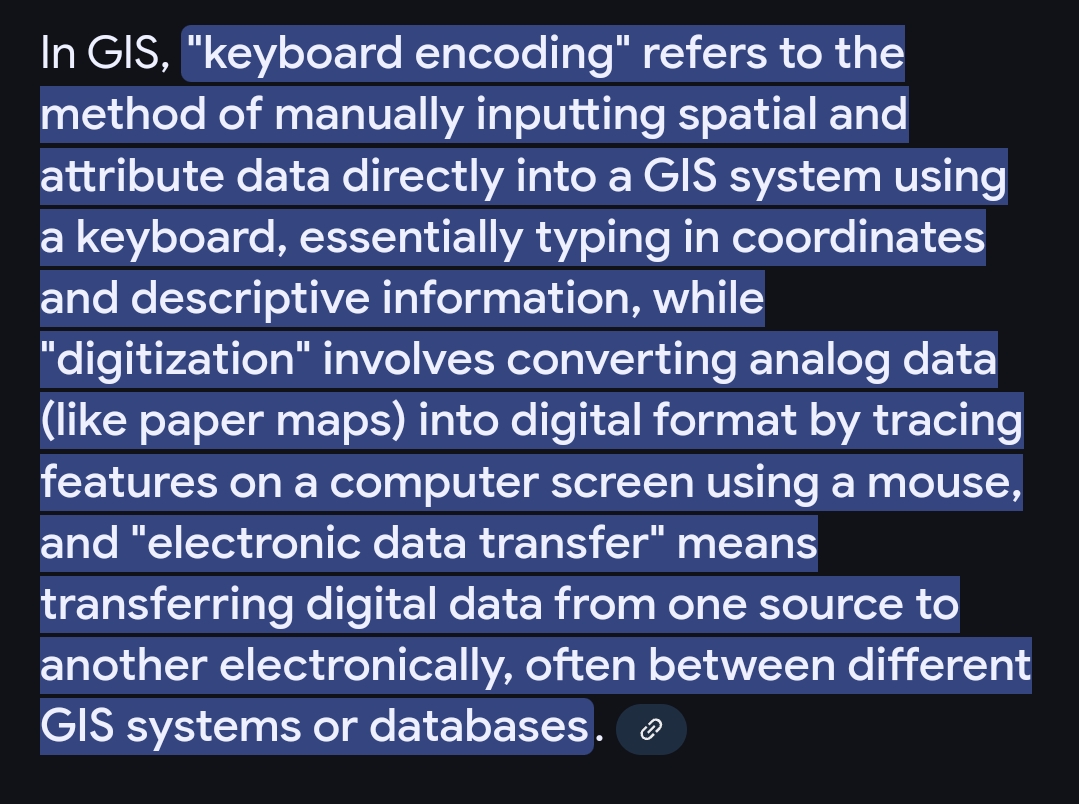

1. Keyboard Encoding:

  • Concept: Directly entering spatial and attribute data into a GIS using a keyboard. Think of it like typing coordinates and information into a spreadsheet, but this spreadsheet is linked to a map.
  • Terminology:
    • Coordinate pairs (X, Y): Values representing a location on a map (e.g., latitude and longitude or a projected coordinate system).
    • Attribute data: Descriptive information about a feature (e.g., name, type, elevation, population).
    • Data entry form: A structured interface within the GIS software for inputting data.
  • How it works: A user opens a data entry form in the GIS software. They then type in the X and Y coordinates for a point location (e.g., the location of a well). They also type in the associated attribute data (e.g., well name, depth, yield). This process is repeated for each feature.
  • Example: Imagine you're mapping the locations of trees in a small park. You have a list of each tree's location as X and Y coordinates from a survey. You would use keyboard encoding to enter these coordinates, along with attributes like tree species, age, and health, directly into your GIS.
  • Advantages:
    • Simple for small datasets.
    • Useful when data is already in a tabular format (like a spreadsheet).
  • Disadvantages:
    • Very time-consuming for large datasets.
    • Highly prone to human error (typos, incorrect coordinates).
    • Not suitable for capturing complex shapes (like rivers or boundaries).

2. Digitization:

  • Concept: Converting analog data (like paper maps, aerial photos, or scanned images) into digital format. This involves tracing features on a screen to capture their coordinates.
  • Terminology:
    • Georeferencing: Assigning real-world coordinates to the scanned map or image so it aligns correctly with other spatial data. Crucial for accuracy.
    • Vector data: Data represented by points, lines, and polygons. Digitization creates vector data.
    • Node: A point where lines intersect or end.
    • Vertex: A point along a line or polygon that defines its shape.
  • How it works: A paper map is scanned and displayed on the computer screen. The user then uses a mouse (or a digitizing tablet and puck) to trace the features they want to capture. For example, they might trace the outline of a lake to create a polygon representing the lake's boundary. The GIS software records the coordinates of the points traced, creating a digital representation of the feature.
  • Types:
    • Heads-up digitizing: Tracing directly on the computer screen using a mouse. This is the most common method today.
    • Heads-down digitizing: Using a digitizing tablet and a puck (a handheld device with crosshairs) to trace on a physical map placed on the tablet. More precise but less common now.
  • Example: You have an old paper map of a city's water network. You scan the map and georeference it. Then, you use heads-up digitizing to trace the lines representing water pipes, creating a digital layer of the water network in your GIS.
  • Advantages:
    • Allows for capturing complex features and shapes.
    • Can create accurate spatial data from existing maps.
  • Disadvantages:
    • Time-consuming, especially for large or complex maps.
    • Requires careful georeferencing to ensure accuracy.
    • Can be tedious and prone to user fatigue.

3. Electronic Data Transfer (EDT):

  • Concept: Moving digital data from one source to another electronically. This could be between different GIS software, databases, or even different departments within an organization.
  • Terminology:
    • Data format: The way data is organized and stored (e.g., shapefile, GeoJSON, KML, database formats).
    • API (Application Programming Interface): A set of rules and specifications that allow software systems to communicate with each other.
    • Data interoperability: The ability of different systems to exchange and use data.
  • How it works: Data is exported from one system in a specific format (e.g., a shapefile). This file is then transferred electronically (e.g., via network, email, or cloud storage) to another system. The receiving system then imports the data. Sometimes, data transformations are needed to ensure compatibility between systems.
  • Example: A city's planning department uses one GIS software, while the transportation department uses another. They need to share data about road closures. The planning department exports the road closure data as a GeoJSON file and sends it to the transportation department. The transportation department imports the GeoJSON file into their GIS.
  • Advantages:
    • Efficient and fast way to share data.
    • Enables integration of data from different sources.
  • Disadvantages:
    • Requires understanding of different data formats.
    • May require data conversion or transformation.
    • Potential compatibility issues between systems.
